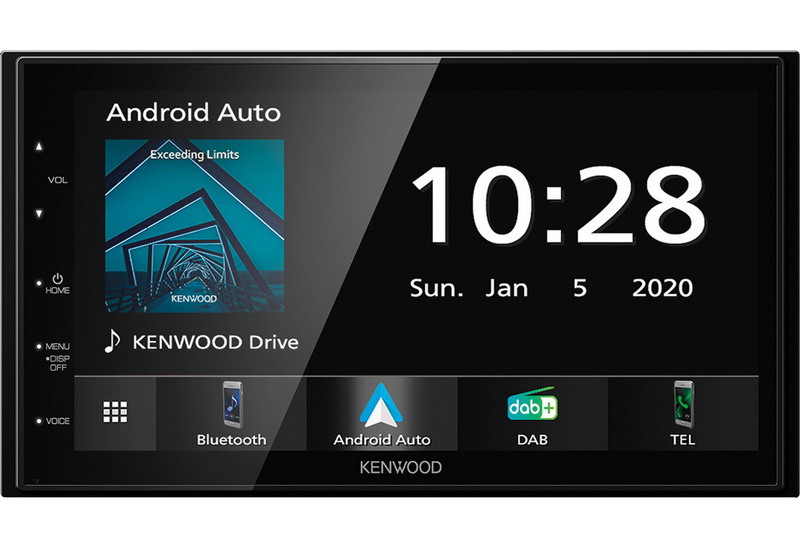

KENWOOD MULTIMEDIA 6.8″ DMX5020BTS
Περιγραφή Προϊόντος
Key Features
6.8" WVGA Capacitive Touch screen - White Key Illumination
Apple CarPlay® & Android Auto™ Ready
Android USB Mirroring Ready
Built-in DAB+ Tuner & Bluetooth module
Bluetooth wireless music browsing ready
2 Preouts + subwoofer(mono) (2,0V)
13 Band EQ - DSP - DTA Built-in
AV-in or Camera-in (Selectable) / AV-out
Rear Camera input with built-in parking guide lines
Short Chassis for easy installation
General Features
DIN Size: 2 DIN
Smooth GUI: Yes
Selectable GUI Background Wallpaper: Yes
Key Illumination: White color
Back-up Memory: Yes
Attenuator with Smooth Volume Return: Yes
Touch Sensor Tone: Yes
Optional IR remote controller: Yes, (KNA-RCDV331)
Digital Clock (24H): Yes
ISO connector: Yes
Built-in Bluetooth: Yes
DAB Tuner Built-in: Yes
Made for iPod: Yes
Works with Apple CarPlay: Yes
Works with Android Auto: Yes
Android USB Mirroring: Yes
Firmware upgreadable: Yes
Monitor Features
Screen Type: 6.8" Wide VGA
Display Mode: 4 Mode (Full/Zoom/Normal/Auto)
Screen Adjustments: Brightness / Tint / Color / Contrast
Dimmer function: Manual/Sync
Dimmer Level: yes
Visual Source Mode: Mirorring / CarPlay / Android Auto.
Display Type: Glare
Display film: Anti Fingerprint
Display Panel: Capacitive
Mechanism type: Fixed
NTSC/PAL judge: Yes (Auto)
Display Off Mode: Yes
Multimedia GUI Features
OSDC Type: Graphic
Menu text
14 languages:
► English(UK)(Default)
► English(US)
► Spanish
► French
► German
► Italian
► Dutch
► Russian
► Portuguese
► Hebrew
► Greek
► Polish
► Czech
► Hungarian
Software updates (SoC)
Demonstration Mode: Yes
Top Menu Customize: Yes
Opening Screen Type: standard
Background Customize: 6 x presets + 2 x user set
R-CAM interrupt: Yes
R-CAM Parking Guide Lines: Yes
Tuner Features
Station Select: Manual / Preset (List)
FM Reception: Yes
AM (MW/LW) Reception: Yes
Tuner Presets (FM/AM): 20 Presets (15FM / 15AM)
Tuning mode: Auto1/Auto2/Manual
Up/Down Seek/Scan: Yes
Automatic Memory Entry (AME): Yes
FM Stereo / Mono Selector: Yes
Radio Data System: Yes
Radio Text Plus: Yes
Traffic Information: Yes
Local search: Yes
AF Regional: Selectable: AF/AF Reg/OFF
Enhanced Other Networks Function (EON): Yes
Program Type Function (PTY): Yes
CE DAB tuner features
DAB+ tuner built-in: Yes
Digital Radio Certification Mark: Yes
Intelligent seek: Yes
Tuning mode / Seek mode: Auto1/Auto2/Manual
Service preset: 15 ch * 1 bank presets,
Service list by alphabet order: Yes
Preset list: Yes
Alphabet Search: Yes
DAB-RDS integrated TI: Yes
Traffic Information: Yes
DAB-DAB/DAB-FM auto switch: Yes
DLS (Dynamic Label): Yes
PTY (Programme Type) search: Yes
Announcement Switching (ASW) Select: Yes
Soft linking: Yes
Antenna power supply on/off switch: Yes
Bluetooth General Features
Hands Free Profile (HPF):V1.6
Hands Free Profile with High Sound Quality: HFP V1.6
Audio Streaming (A2DP): Yes, (SBC/AAC)
Serial Port Profile (SPP): Yes
Simple Secure Pairing (SSP): Yes
Phonebook Access Profile (PBAP): Yes
Generic Access Profile (GAP): Yes
Service Discovery Profile (SDP): Yes
Audio/Video Remote Control Profile (AVRCP): Yes, V1.5
Catchphone / Call Waiting: Yes
Private mode: Yes
Alphabet Search (Phonebook): Yes
Voice Control: Yes
Noise Canceller: Yes
Echo Canceller: Yes
Signal strength display: Yes
Remaining battery display: Yes
Bluetooth Paring Indicator: Yes
High-quality noise canceling microphone: included
Bluetooth firmware upgradeable: Yes, Included in system updates
Playable Audio File
AAC (*.aac) files are playable: USB
MP3 files are playable: USB
WMA (.wma) files are playable: USB
WAV (.wav) files are playable: USB
FLAC files are playable: USB
CE_Playable Video file
MPEG1/2 files are playable: USB
MPEG4 files are playable: USB
WMV files are playable: USB
H.264 files are playable: USB
mkv files are playable: USB
JPEG files are playable: USB
USB Features
USB terminal:Yes, rear side / 1m cable / fix
USB Type:2.0 High speed
Works with Android Auto: Yes
Works with Apple CarPlay: Yes
USB Mirroring for Android: install "Mirroring OA for KENWOOD" from Playstore
Repeat Play:Folder/File/All
Random play: Folder
Category search:Yes
Link Search:Yes
Resume play:Yes
Time code display:Yes
1,5A Smartphone Quick Charge:Yes
Audio features
Max. Output Power (MOSFET Power IC): 4 x 45W
Pre-out: 2 RCA : FRONT/REAR + SUB(mono)
Pre-out Output Level: 2V
Volume Offset: Yes
Balance/Fader Control: Yes
Att.(-20dB) with smooth Volume Return: Yes
Equalizer: Yes, 13 Band Graphic EQ
Digital Sound Processor (DSP): Yes
Digital Time Aligment (DTA): Yes
Beep On/Off: Yes
Multimedia DSP Features
Loudness:Yes
Bass Boost:Yes
Car type control
► Off
► Compact
► Sedan
► Wagon
► Minivan
► SUV
► Passenger Van
Speaker Size & Location Control: Yes
X'over network:2-way X'over / HPF / LPF
Listening postion control / Time Alignment:Yes
Equalizer type: Graphical
Equalizer: 13-Bands
Equalizer presets / User set: 7 presets / 4 User set
Balance & Fader Control: Yes
Source Volulme Offset: source independent
Audio Setup Memory: Yes
Video Features
Audio Video Output: Yes, Video only (RCA)
Audio/Video Input: Yes, AV-input or Camera input (Selectable)
Video-In for Rear-view Camera: 1 dedicated video input (RCA)
Detection Mode Rear View Camera: Reverse sensor wire
Parking Guide Line: Yes
Connectivity
OEM Wired Remote Control ready: Yes, Optional interface needed
Programmable OEM Steeringwheel Remote Function: Yes
Parking sensor (handbrake) wire: Yes
Power Control (P.CON) wire: Yes
Dimmer control wire: Yes
Preout: 2 x RCA (Front/rear) + Sub (mono)
AV-Input: 1x mini-jack (selectable: AV-in / Camera-in)
Video Out: RCA x1
Reverse sensor wire: Yes
Rear View Camera Input: Dedicated RCA Video-in
FM Antenna Input: JASO connector
DAB Aerial input: SMB
External microphone input: 3,5mm mini-jack
Tuner Specifications
FM range: 87.5Mhz - 108MHz (50Khz step): Yes
FM Usable Sensitivity:1.8μV/75ohm (S/N 30dBf)
FM Frequency Response: 30Hz ~ 14kHz (± 3dB)
FM Signal to noise ratio (Mono): 50dB
FM Stereo Separation (1kHz): 35dB
MW range: 531kHz - 1611kHz (9kHz step): Yes
MW Usable Sensitivity: 99μV
DAB Tuner specifications
Band III - Frequency range 174.928 MHz - 239.2MHz
Mode: I, II, III, IV
Sensitivity - 98dBm
Signal to noise ratio: 82dB
Audio Format: MPEG1 Audio Layer II, MPEG4 HE-AAC V2
DAB Aerial Connector Type: SMB
Output Voltage: 14V (10.5V to 16V allowable)
Maximum Current: < 100 mA
Bluetooth specifications
Technology: Bluetooth V4.1
Frequency: 2.402 - 2.48 GHz
Output power: +8dBm(max), power class 1
Maximum range: Line of sight approx. 10 meter
Handsfree profile (HFP): Yes, V 1.6
Serial port profile (SPP): Yes
Advanced audio distribution profile (A2DP): Yes
Audio Codec: SBC/AAC
Phonebook access profile (PBAP): Yes
USB Specifications
USB Version compatibility: USB 2.0 High Speed
File System : FAT 16/32, exFAT
Maximum Supply current : 1500mA
D/A Converter: 24bit
Video Decoder: MPEG1/2/4, WMV, H.264, mkv
Audio Decoder: MP3, WMA, AAC, WAV, FLAC
Audio Specifications
Maximum Power: 45W x 4
Output Power (DIN45324,+B=14.4v): 21W x 4
Output frequency band: 20Hz ~ 20kHz
Preout Level: 2000mV / 10kOhm,
Preout Impedance: ≤ 1400Ohm
Speaker Impedance: 4Ohm ~ 8Ohm
DSP Specifications
Frequency band - Front: 62.5Hz ~ 16kHz
Equalizer Gain: –9db ~ +9db
2-Way X'over / Front/Rear (HPF) / Frequency: trough/30/ ... /220/250Hz
2-Way X'over / Front/Rear (HPF) / Slope: -6/-12/-18/-24 (dB/oct)
2-Way X'over / Subwoofer (LPF) / Frequency: 30/40/ ...250Hz/Through
2-Way X'over / Subwoofer (LPF) / Slope: -6/-12/-18/-24 (dB/oct)
Position: 2-Way (Front/Rear/Sub)Delay: 0cm ~ 610cm (1cm step)
Subwoofer Level: -40dB ~ 6dB
Equalizer Type: Graphic
Frequency band: 13 bands
Video Specifications
Color System of External Video Input: NTSC/PAL
External video input level (mini-jack): 1 Vpp / 75 Ohm
External Audio Max. Input Level (RCA): 1.5 V / 25 kOhm
Monitor Specifications
Screen size (Diagonal): 6.75 Inches Wide
Screen Size (WxH): 151.8 x 79.7mm
Display system: Transparent TN LCD Panel
Drive system: TFT Active Matrix System
Number of Pixels: 1152000pixels (800(H) x 480(V) x RGB)
Effective pixels: 99.99%
Pixel arrangement: RGB Striped
Back lighting: LED (Light Emitting Diode)
General Specifications
Operating voltage: 14.4V (10.5 ~ 16V Allowable)
Dimensions (WxHxD): 178 x 100 x 75mm
Weight: 1.1 gr.
Weight, inclu. sleeve & escutcheon: 1.3 kg
Accessories
Release keys: 2 pieces
Escutcheon: Yes
Installation Sleeve: Yes
Handsfree Microphone: with 3 m cable
Multi-Language Instruction Manual Included
