Wi-Fi mirroring adapter for Toyota Touch 2

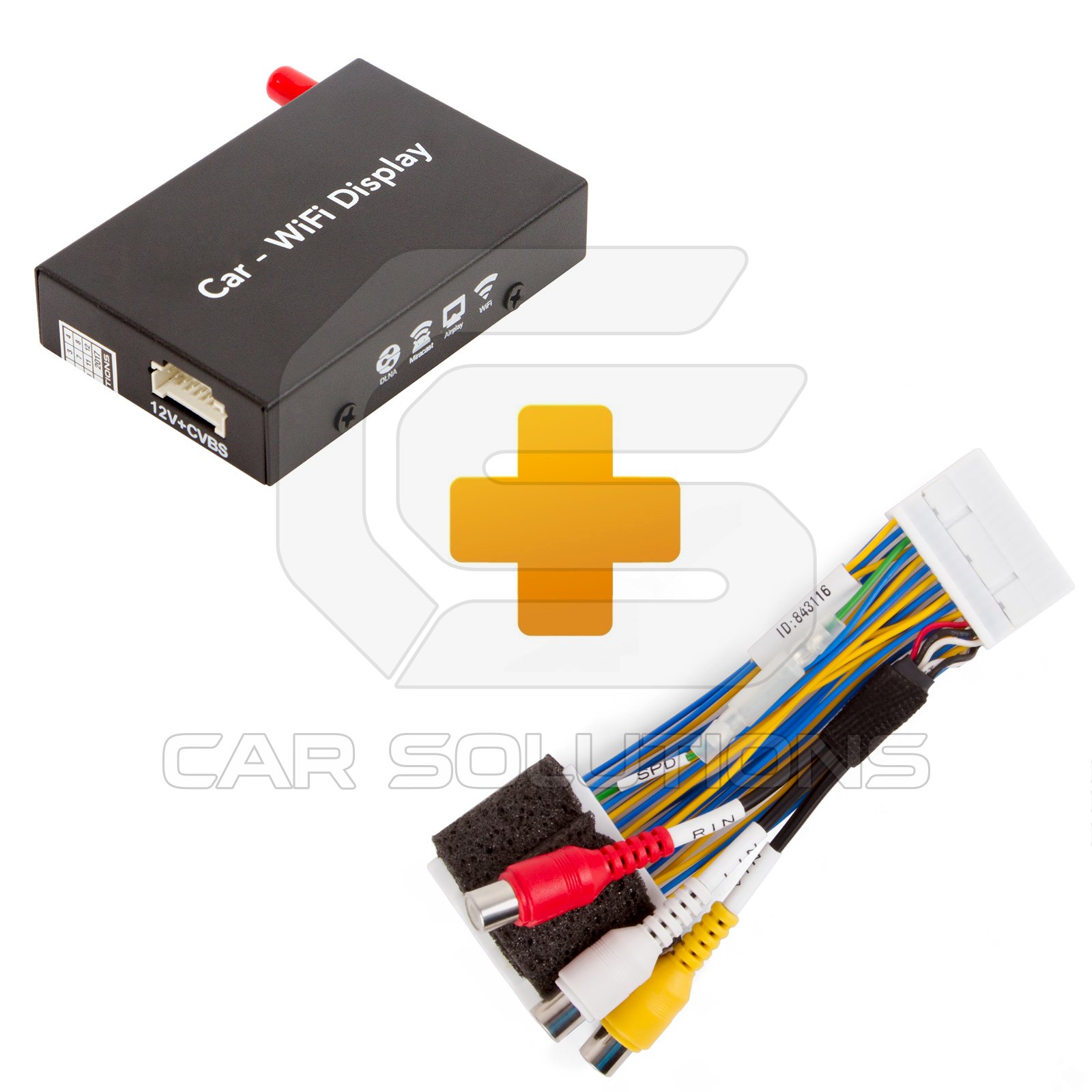

The kit includes a smartphone/iPhone mirroring adapter and a video connection cable for Toyota Touch 2 / Entune monitors.

Adapter for connecting iOS and Android devices to the car multimedia system. Allows playing video and audio on connected monitor. Supports screen mirroring to display navigation, menu, applications, etc. on the connected monitor.

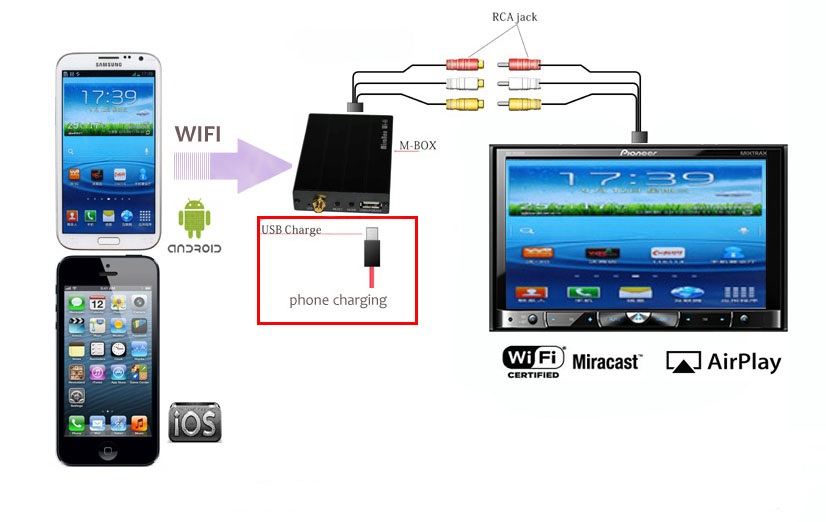

The adapter is connected to the monitor via RCA cable. iPhone/iPod/iPad or Android phone/tablet PC are connected to the adapter via Wi-Fi and thus stream video and audio to the connected monitor. Screen mirroring function is also supported.

Note! The sound may be missing because the adapter uses a specific audio signal without the GND signal and some equipment can't recognize this type of signal. The simplest solution is to put a jumper between the terminals, as shown on the photo.

Note! The adapter now supports devices with iOS11 operating system. Update instructions can be found here.

Video connection cable

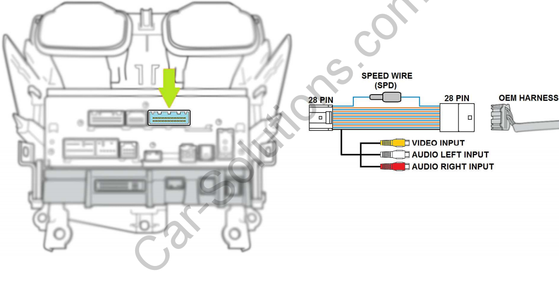

This cable allows you to arrange audio and video input in Toyota Touch 2 OEM monitors without using a video interface. After the cable connection "AV input" icon is automatically activated in the monitor, and video in motion is enabled. As a result, you receive fully functional AV input with possibility to connect composite video signal PAL\NTSC, and also linear stereo signal.

Note! In some car models the speed wire (SPD) should be disconnected while driving to be able to display picture from connected sources. However, this may cause problems when using OEM navigation system. Therefore, this wire should be connected to be able to use OEM navigation.

Compatibility

Touch 2
