Low Line - Rear View Camera KIT - With Guidance Lines - Retrofit - for Seat Leon Facelift
Περιγραφή Προϊόντος
NEW Seat Leon - Low Line - Rear View Camera KIT - With Guidance Lines - Retrofit -
To make sure that the product will be compatible
please provide the chassis number (VIN) in the ordering process or by email.
See behind your car with rear view camera.
A camera at the back of your car shows you what's behind to make reversing safer and easier.
Or rear view camera lets you spot any obstacles behind your car - even moving ones - quickly and easily, thanks to the rear view camera.

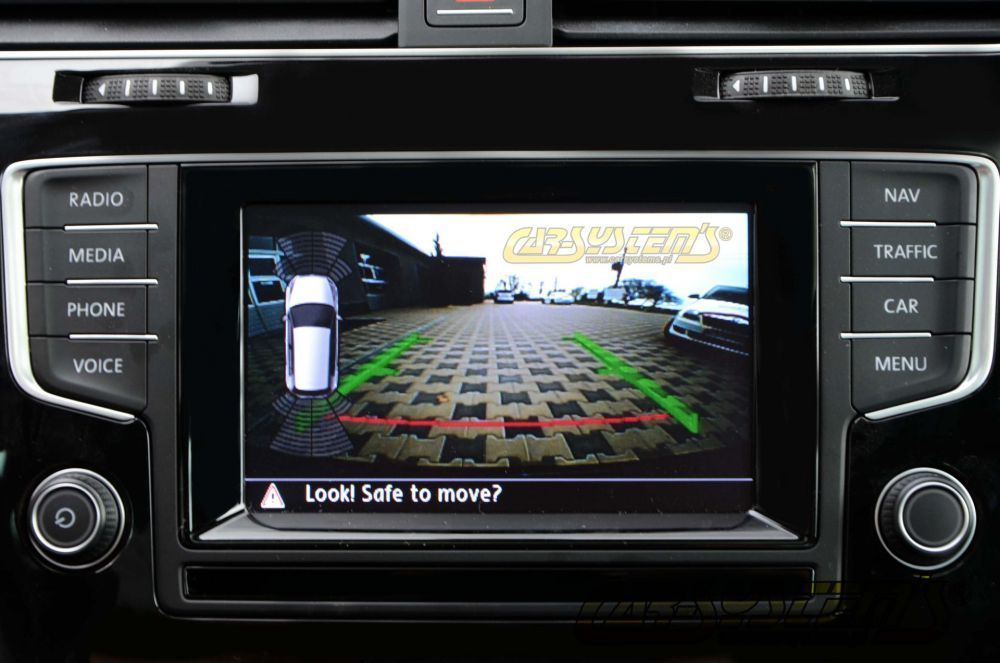

The camera starts working as soon as you put your car into reverse gear. It shows the area behind your car on your radio or radio navigation system display offering you a clear reversing image with easy-to-follow guidelines. Superimposed graphic lines guide you to the optimal steering lock, guaranteeing fuss-free, smooth parking.
Using the rear view camera means you'll be able to manoeuvre quickly and easily, even into the most difficult parking space. It also alerts you to low-down obstacles which parking sensors cannot always detect. The reversing camera is also a great help when you're hitching up a trailer.
VAS / VCDS Coding after installation required
Compatible with Head Unit:
- Seat Media System
- 5F0919603A
- 5F0919604A
Not Compatible with Head Units:
- 5G0035820 - all index
- 5G0035819 - all index
- 5G0035812 - all index
Wiring Diagram:
RED - +12V constant
YELLOW - reverse light signal
BLACK - GND

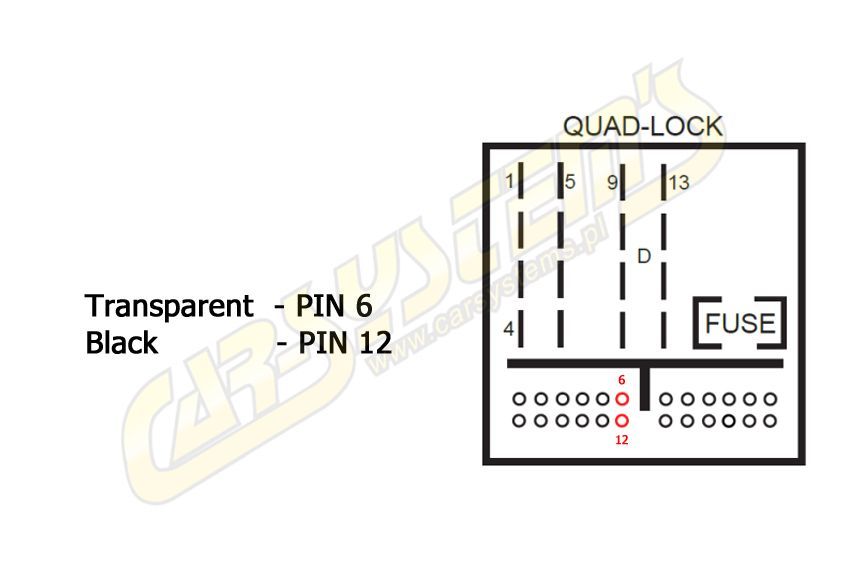

Video Signal:
(QUADLOCK connector head unit) - 8X0 035 447
PIN No. 6 - transparent wire
PIN No. 12 - black wire

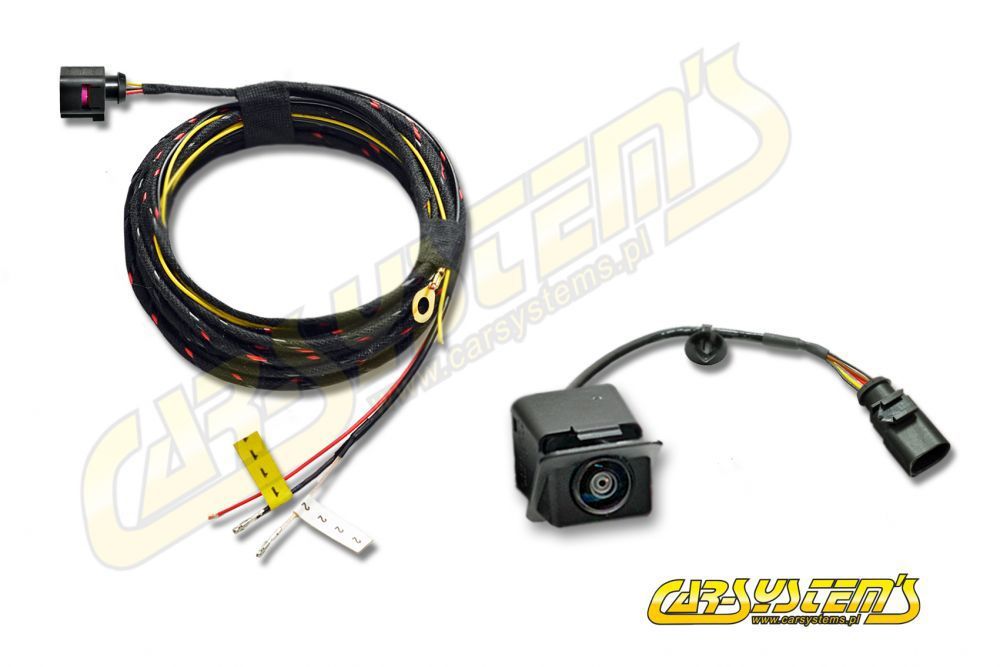

Scope of delivery :
- 1x VW Rear View Camera
- 1x Camera Holder/Bracket
- 1x Plug&Play cable
