Rear Low Line Emblem Camera KIT - Composite Output for VW Golf VI Mk6 MIB Retrofit from RNS to Composite Head Unit
Περιγραφή Προϊόντος
Volkswagen Original Rear Emblem Camera KIT Composite Output for VW Golf 6
Retrofit from RNS to Composite Head Unit
See behind your car with a camera in your boot.
A camera at the back of your car shows you what's behind to make reversing safer and easier.
Or rear view camera lets you spot any obstacles behind your car - even moving ones - quickly and easily, thanks to the camera built into the boot.

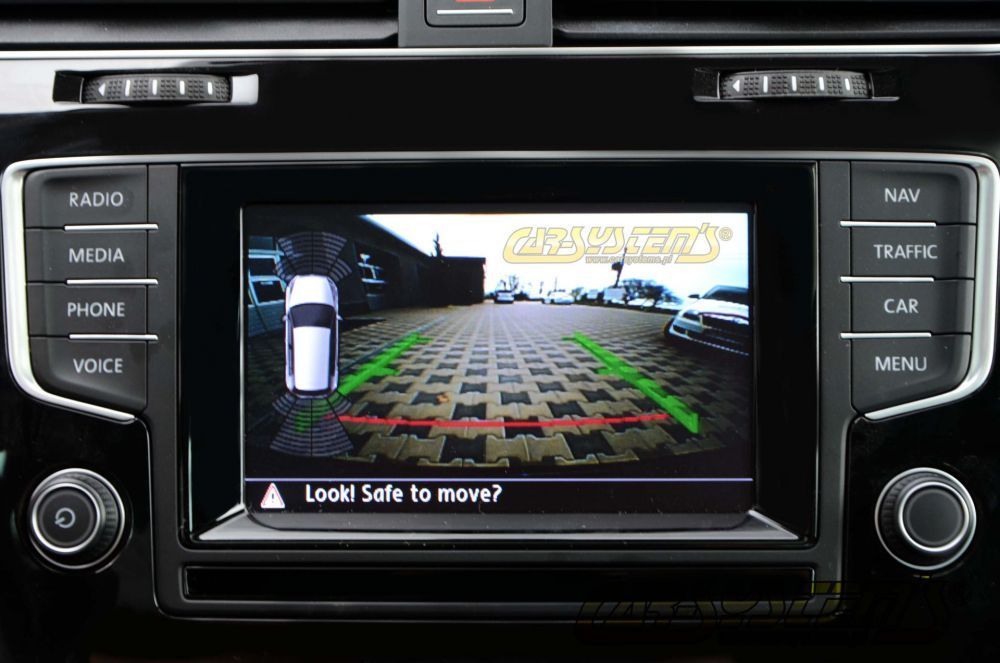

The camera starts working as soon as you put your car into reverse gear. It shows the area behind your car on your radio or radio navigation system display offering you a clear reversing image with easy-to-follow guidelines. Superimposed graphic lines guide you to the optimal steering lock, guaranteeing fuss-free, smooth parking.
Using the rear view camera means you'll be able to manoeuvre quickly and easily, even into the most difficult parking space. It also alerts you to low-down obstacles which parking sensors cannot always detect. The reversing camera is also a great help when you're hitching up a trailer.
VAS / VCDS Coding after installation required
Compatible with head unit :
- Navigationssystem: Discover Media
- Navigationssystem: Discover Pro
- Radiosystem: Composition Media
- Not compatible with Composition Media with the following part numbers :
- 5G0035820 - all index
- 5G0035819 - all index
- 5G0035812 - all index
Wiring Diagram:
RED - +12V constant
YELLOW - reverse light signal

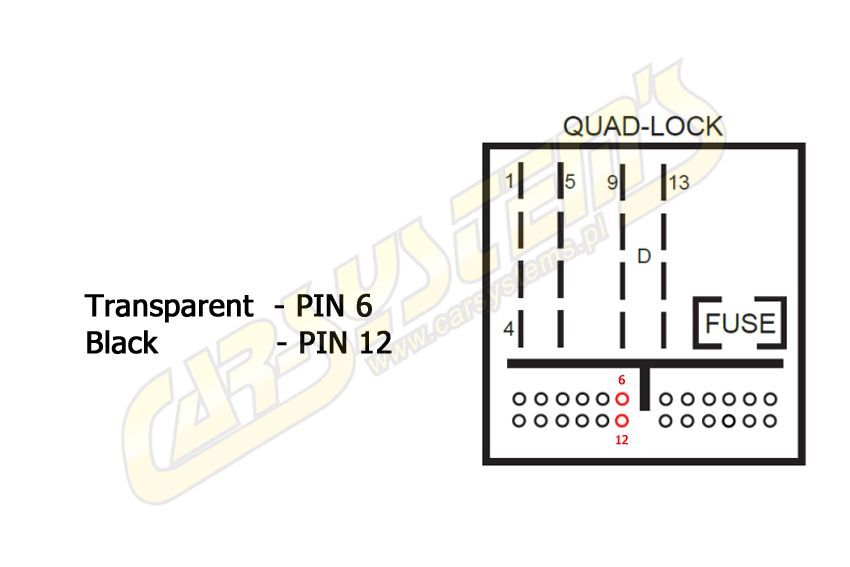

Video Signal:
(QUADLOCK connector head unit) - 8X0 035 447
PIN No. 6 - transparent wire
PIN No. 12 - black wire

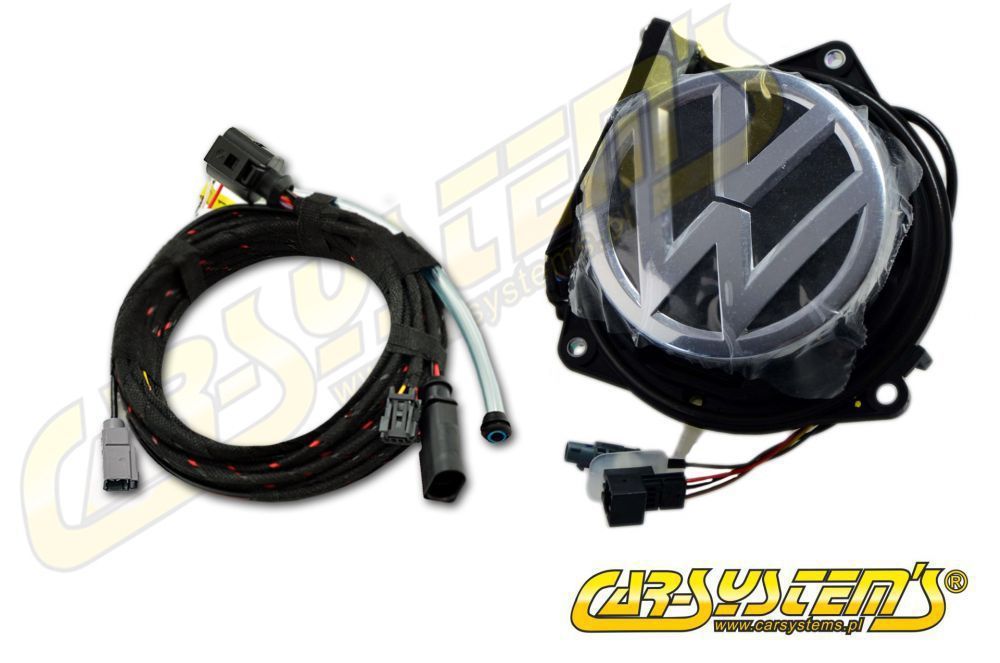

Scope of delivery :
- 1x VW Emblem with Camera + Drain Tube
- 1x Plug&Play cable - lenght : 6.5m
- 1x Adapter
