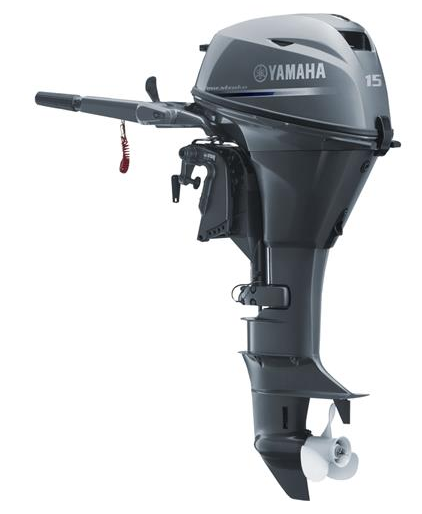

F15CE Extra Long
Steering friction
You'll find the F15C very easy to control and comfortable to drive, thanks to its many features - from the front-mounted shift lever and single-lever steering friction adjuster to the light-load recoil starter. A built-in handle on the steering bracket and resting pads on the rear, make for convenient handling and portability too.
PrimeStart™
Start your outboard engine as easily as starting a car – even from cold. Exclusive to Yamaha, the PrimeStart™ system ensure that the engine fires first time, every time you engage either the Electric or Manual Start.
High-output alternator
Never get left short. A High-output alternator ensures that power is always available to start the engine – even after prolonged periods of idling or when you've been running at low revs and using numerous accessories.
Shallow Water Drive system
Cruise towards the shore with confidence thanks to Yamaha's Shallow Water Drive system. Offering ample protection for your propeller, it allows you to get as close as you need to be, no matter whether you're cruising a murky lake or the crystal clear shallows of the sea.
F-N (Forward-Neutral) gears for easy control
Manual gear selection allows the engine to be warmed up in Neutral. The propeller will not turn until Forward is selected for safer idling. Ensures smoother acceleration and better control especially when turning. On Electric Start versions, the power supply to the starter motor is isolated until Neutral is selected.
Fresh Water Flushing system
An easy-access, front-mounted connector allows you to easily flush salt and dirt from the waterways without having to run the engine: just connect a hose and you're ready to go. This is a very efficient way to reduce corrosion and extend the life of your outboard.
Technical specifications
Engine type 4-stroke
Displacement 362 cm³
No. of cylinders/configuration 2/In-line, SOHC
Bore x stroke 63.0 mm x 58.1 mm
Prop shaft output at mid range 11.0kW / 5,500 rpm
Full throttle operating range 5,000 - 6,000 rpm
Lubrication system Wet sump
Fuel Induction System 1-Carb
Ignition / advance system CDI
Starter system Electric (E, EH, EP), Manual (MH) with prime start™
Gear ratio 2.08 (27/13)
Dimensions
Recommended boat transom height S:438mm L:565mm
Weight with propeller F15CMHS: 51.0 kg, F15CMHL: 53.0 kg, F15CES: 52.0 kg, F15CEL: 54.0 kg, F15CEHL: 56.0 kg, F15CEPL: 60.0 kg
Fuel tank capacity separate, 25 litres
Oil pan capacity 1.8 litres
Additional features
Control Tiller handle (MH, EH), Remote control (E, EP)
Trim & tilt method Power Tilt (EP), Manual (MH, EH, E)
Lighting Coil / Alternator 12V - 10A with rectifier/regulator **
Tilt limitter (only for remote control specs) -
Engine immobiliser -
Propeller Included
Counter Rotation Model -
Shallow Water Drive Standard
Digital Network Gauge II (LCD Color) -
Digital Network Gauge (Round/Square) -
Variable Trolling RPM -
Dual Battery Charging System -
Shift Dampener System (SDS) -
Remark The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft, ** Optional for MH model, standard for E model
