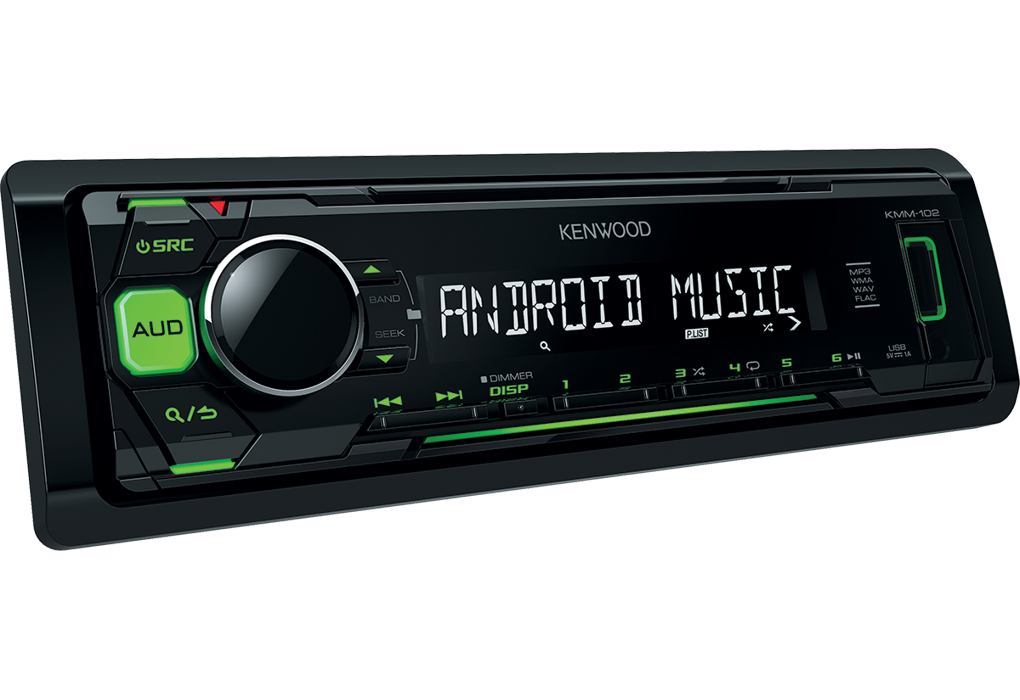

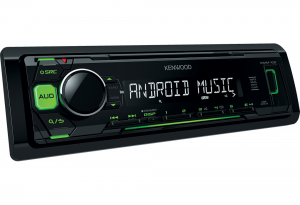

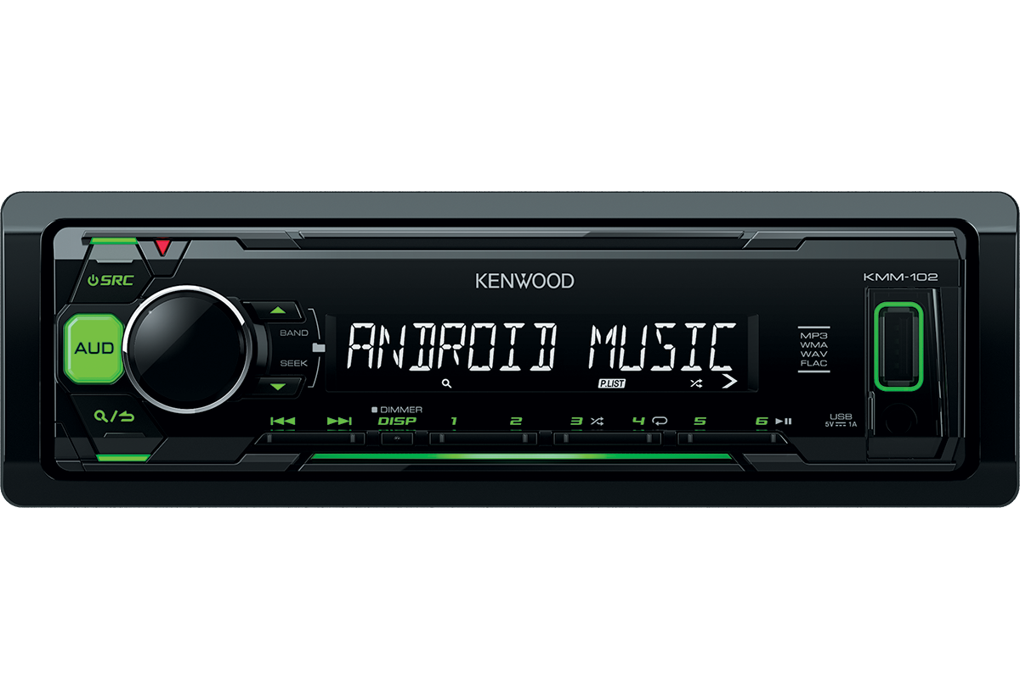

KMM-102GY

Key Features

4 x 50W Max output power
1 RCA Preout, 2,5V
Full detachable faceplate
Android MSC / AOA2 compatible
TuneinRadio/AUPEO App mode
MP3, WMA, WAV & FLAC playback
Green Key & White Display Illumination (LED)
FM with RDS & AM tuner
Easy Sound Enhancment features

Specification

General Features

DIN Size 1 DIN
Detachable Faceplate Yes
Key Illumination Green
Rotary Encoder & Control Knob Yes
Music Search function Yes
Accent key Audio Control
Back-up Memory Radio presets
Attenuator with Smooth Volume Return Yes
Digital Clock (24H) Yes
All-off Select (20/40/60 minutes) Yes

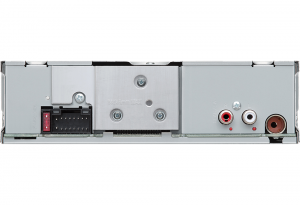

Built-in Connector Molex 16 pin
Firmware upgreadable Yes
Display Features

Display Type Liquid Crystal Display (LCD)
Display Layout 13 characters/digits
Display Illumination White LED
Dimmer Control Manual / Set by Timer
Dimmer Timer Yes
Brightness control Display (32 steps)
Demo Mode Yes
Menu text in selectable language English, Spanish, Russian
TAG Language Display English, Spanish, Russian, Greek & Turkish

Full Specification

Cosmetics features

Triangle Illumination Red
Key illumination Green
Display illumination White LED
Front terminals dust cover Yes
Tuner Features

Radio Data System Yes
Radio Text Plus Yes
Traffic Information Yes
AF Regional Selectable: AF/AF Reg/OFF
Local search Yes
Auto TP search Yes
Automatic Memory Entry (AME) Yes
FM Stereo / Mono Selector Yes
Preset memory w/o back-up power Yes
Enhanced Other Networks Function (EON) Yes
FM Reception Yes
AM (MW/LW) Reception Yes
Presets 24 Presets (18FM / 3LW / 3MW)
Mixed preset memory (FM & AM) 6 presets
Tuning mode
USB Features

USB Type USB 1.1/USB 2.0 Full Speed
Drive Change Yes
Kenwood Music Editor Lite Compatible Yes
Kenwood Music Control App for Android Yes
Android Open Accessory support (AOA) V 2.0
MP3, WMA, WAV, FLAC playback Yes
Repeat/Scan/Random search Yes
Repeat / Random Play Yes
Resume play Yes
Time code display Yes
1A Charge Capability for Smartphone. Yes
Audio Features

Maximum Output Power 50W x 4
MOSFET Power IC Yes
Auxiliary input Front Mini-jack
Pre-out 1 RCA
Pre-out Output Level 2.5V
Preout Rear / Subwoofer Switchable Yes
Subwoofer Reference Level Adj. Yes
Balance/Fader/Loudness Control Yes
Loudness Control Off/Low/High
Bass Boost Circuit Off/+1/+2/+3/+4/+5
System Q Preset EQ
Equalizer built-in Yes, 3 band with 8 presets
Low-pass Filter Yes
Kenwood Sound Reconstruction Yes
Drive EQ Yes
Connectivity

Front USB & AUX Input Yes
OEM Wired Remote Control ready Yes
DC-Cord Molex to ISO
Power Control (P.CON) wire Yes
2-way (Tel/Navi) mute wire Yes
FM Antenna Input Yes
Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step) Yes
FM Usable Sensitivity 0.71μV/75ohm (S/N 26dB)
FM Quieting Sensitivity 2μV/75ohm (S/N 46dB)
FM Frequency Response 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono) 64dB
FM Stereo Separation (1kHz) 40dB
MW range: 531kHz - 1611kHz (9kHz step) Yes
MW Usable Sensitivity 28.2μV
LW range: 153kHz - 279kHz (9kHz step) Yes
LW Usable Sensitivity 50μV
USB Specifications

USB Version compatibility USB 1.1/2.0 full speed
File System FAT 32/16/12
Maximum Supply current 1000mA
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode AAC-LC "m4a" Files
WAV Decode Linear - PCM Files
flac Decode FLAC files up to 48kHz/16bit
Audio Specifications

Maximum Power 50W x 4
Output Power (DIN45324,+B=14.4v) 30W x 4
Preout Level 2500mV / 10kOhm,
Preout Impedance ≤ 600Ohm
Speaker Impedance 4Ohm ~ 8Ohm
AUX Frequency Response 20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage 1000mV
AUX Input Impedance 30kOhm
Bass Tone Control 100Hz ±8dB
Middle Tone Control 1kHz ±8dB
Treble Tone Control 12.5kHz ±8dB
Subwoofer Level (dB) -15 dB to +15dB
Accessories

Release keys 2 pieces
Escutcheon Yes
Installation Sleeve Yes
DC cord (Molex to ISO) 25 cm
Multi-Language Instruction Manual Included Quick-Guide
Manuals Downloadable Yes
General Specifications

Operating voltage 14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption 10A
Dimensions (WxHxD) 182 x 53 x 107mm
Weight, inclu. sleeve & escutcheon 0.6 kg
Unit weight in individual package 0.8 kg
Operation Temperature Range -10°C ~ 60°C
